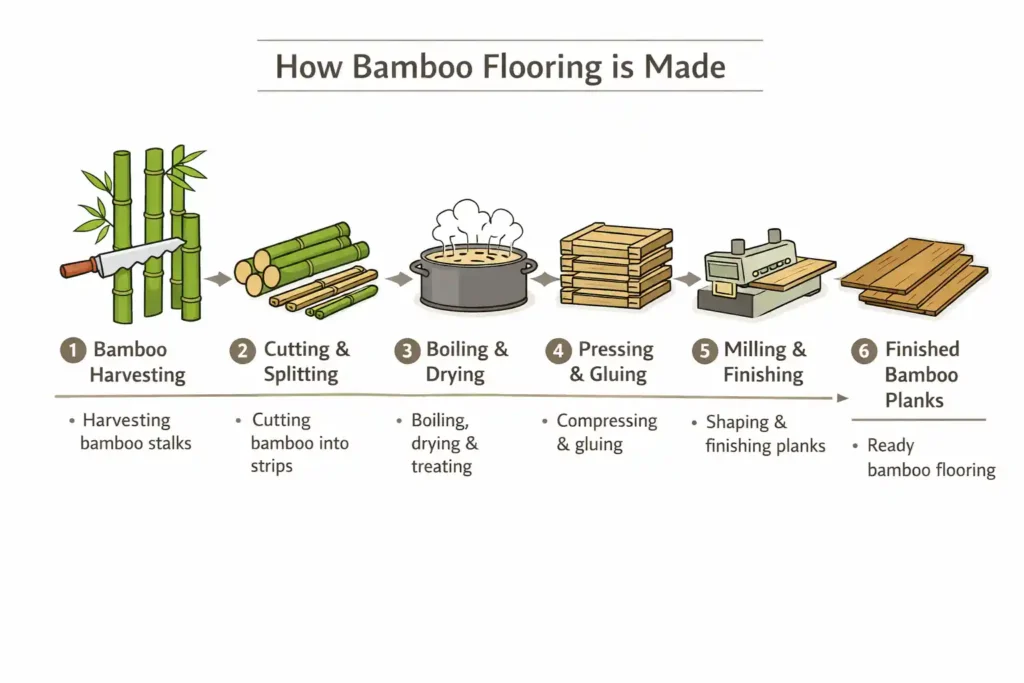

Bamboo flooring is produced by harvesting the culms of Phyllostachys edulis — commonly called Moso bamboo — processing them through boiling, drying, pressing, and finishing to create planks that range from moderately durable laminated strips to ultra-dense compressed fiber boards. The manufacturing method chosen at the outset determines the flooring’s final hardness, dimensional stability, appearance, and VOC profile. No single production path applies to all bamboo floors; horizontal, vertical, and strand-woven formats each follow a distinct sequence of steps that produces a structurally different product.
Why the Raw Material Stage Determines Everything Downstream
Moso bamboo reaches structural maturity between five and six years of growth. Culms harvested before five years contain insufficiently developed fiber, which reduces internal bonding strength and accelerates long-term instability. Culms older than seven years become brittle, losing the elasticity that allows planks to resist impact without fracturing. Quality-focused factories apply strict age-sorting during initial inspection and reject under-aged material before it enters the production line.
The primary growing provinces — Zhejiang, Anhui, Jiangxi, and Fujian in China — produce culms with the highest fiber density due to their soil composition and rainfall patterns. Moso bamboo stalks used for flooring must reach a minimum diameter of roughly 6 cm with wall thickness exceeding 3 cm; thinner-walled culms yield strips with less usable fiber per cut. The outer green layer and inner yellow layer of each culm require removal before processing because both layers carry lower adhesive receptivity than the core fibers, and leaving them in place weakens glue bond strength at the lamination stage.
The quality of the raw culm sets a ceiling that no downstream manufacturing step can raise. A floor built from under-aged bamboo will delaminate, cup, or warp regardless of how precisely the pressing and finishing stages are executed. Understanding this relationship helps explain why bamboo flooring grades differ so significantly in performance despite appearing visually similar on the shelf.
How Bamboo Culms Are Harvested and Initially Prepared
Harvesting occurs preferably in autumn or winter, when moisture content inside the culm is naturally lower than in summer months. Summer-harvested bamboo carries elevated sugar and starch concentrations in its cells, which increases the risk of fracturing during kiln-drying and creates a more hospitable environment for mold and insect infestation. After cutting, each 7-metre culm is trimmed to a working length slightly longer than the intended plank — for a 960 mm finished plank, the initial cut produces a 1,010 mm section to allow for end-trimming losses during milling.
The culms are then split using mechanical splitters into flat strips of roughly uniform width. For horizontal and vertical bamboo production, these strips are cut to approximately 8 mm thickness. For strand-woven production, the strips undergo an additional shredding step that breaks the material into loose fiber bundles rather than maintaining the strip form. Both pathways then feed into the boiling stage, which marks the first major chemical treatment in the process.
What Boiling and Drying Do to the Bamboo Fiber
Bamboo strips and fiber bundles are submerged in a solution of water, boric acid or hydrogen peroxide, and borate compounds and boiled to eliminate sugars, starches, and organic materials that attract insects and promote mold growth. The boric acid treatment also functions as a natural pest deterrent, penetrating the live cells of the bamboo and rendering them inhospitable to termites and beetles. This step removes the biological vulnerabilities inherent in bamboo as a grass rather than a hardwood.
After boiling, the strips enter kiln-drying chambers. Target moisture content for processed strips runs between 8% and 12% before pressing, narrowing to 6%–9% in the pressed block after stabilization, and reaching 8%–10% in the finished flooring shipped for export. Deviations outside these ranges produce predictable defects: strips dried below 6% shrink excessively after installation when they reabsorb ambient humidity, while strips dried above 12% retain enough internal moisture to cause warping or surface checking during pressing. Advanced factories use calibrated kiln probes and multi-zone drying systems to maintain consistency across large batches.
The relationship between moisture content at the manufacturing stage and dimensional movement in a finished floor is direct and measurable. This manufacturing variable is one reason bamboo flooring expands and contracts — floors manufactured to tighter moisture tolerances demonstrate less seasonal movement after installation.
How Horizontal Bamboo Flooring Is Constructed
Horizontal bamboo flooring is produced by orienting dried strips flat — with the wide face facing upward — and laminating multiple layers under hydraulic pressure. This orientation exposes the bamboo’s natural internodal growth rings, called nodes or knuckles, across the face of each plank. The nodes appear as oval markings distributed along the surface, giving horizontal bamboo its distinctly organic, grass-like appearance. Three to four layers of strips are bonded together using structural adhesive, with the grain direction aligned consistently across all layers.
The flat orientation of horizontal construction means the strips absorb and release moisture primarily through their wide faces, making this format more susceptible to cupping under humidity fluctuations than vertical or strand-woven alternatives. Horizontal planks also consume approximately 60% of each culm in waste because the strip geometry required to expose the node pattern generates significant off-cuts during splitting and trimming.
How Vertical Bamboo Flooring Is Constructed
Vertical bamboo flooring uses the same dried strips as horizontal production but rotates them 90 degrees so that the narrow edge faces upward. Multiple strips are pressed side-by-side in long rows, creating a linear, grain-forward surface pattern without the visible node markings characteristic of horizontal construction. The tight, parallel lines of vertical bamboo produce a more formal, wood-like aesthetic that integrates easily with contemporary interiors.
The narrow-edge-up orientation allows vertical planks to resist moisture absorption slightly more evenly across the face than horizontal planks, though both formats share similar dimensional stability limitations because neither involves the fiber disruption and re-compression that defines strand-woven manufacturing. Both horizontal and vertical bamboo formats are classified as traditional laminated bamboo, and both waste roughly 60% of the raw culm during production.
How Strand-Woven Bamboo Is Manufactured — and Why It Produces a Different Product
Strand-woven bamboo manufacturing begins with the same raw culms as traditional production but diverges radically at the shredding stage. Instead of maintaining strip geometry, the bamboo is mechanically shredded into loose fiber bundles that retain no directional orientation. These fiber bundles are boiled, dried, and then saturated in structural adhesive — typically a no-added-urea-formaldehyde (NAUF) resin — before being fed into hydraulic pressing machines.
The pressing machines apply between 2,500 and 2,800 tons of force, generating approximately 0.19 MPa per square centimeter. Under this pressure, the randomly oriented fiber bundles interlock in multiple directions simultaneously, creating a composite structure in which no single fiber runs parallel to the surface in a way that allows easy cleavage. Heat applied during pressing activates the adhesive and cures the resin into a solid matrix. The result is a block with a density exceeding 1,100 kg/m³ — compared to red oak’s density of approximately 770 kg/m³.
This density differential translates directly into hardness. Strand-woven bamboo achieves Janka hardness ratings between 3,000 and 3,335 lbf, compared to red oak’s 1,290 lbf and maple’s 1,450 lbf. The manufacturing process — not the bamboo species itself — generates this performance gap. Traditional horizontal or vertical bamboo floors test at approximately 1,380 lbf, because their laminated strip construction does not disrupt and re-compress the fiber the way strand-woven production does.
After curing, the solid blocks are sliced into planks on precision saws. The cutting angle relative to the block determines the surface grain pattern: cuts made across the compressed fiber mass produce the characteristic swirling, wood-like grain that distinguishes strand-woven bamboo visually from the node-marked surface of horizontal formats or the linear pattern of vertical formats.
How Carbonization Changes Color — and What It Costs in Hardness
Carbonization is a heat treatment applied to bamboo strips or fiber bundles before pressing to produce darker color tones without surface staining. The process exposes the bamboo to temperatures between 180°C and 220°C under 8 to 12 atmospheres of steam pressure. This caramelizes the natural sugars present in the bamboo fiber, producing a rich brown color that runs through the entire thickness of the plank — not just the surface. A cross-section of carbonized bamboo shows consistent color throughout, whereas a stained floor shows color only in the top few millimeters of finish.
The caramelization of sugars carries a structural cost. Carbonized traditional bamboo floors test approximately 20% softer than their natural-color equivalents, because the heat treatment partially decomposes the hemicellulose and lignin that contribute to fiber rigidity. In practical terms, carbonized horizontal bamboo can perform below some softwood pines on the Janka scale. Carbonized strand-woven bamboo is less affected — the compression process compensates partially — but still scores lower than natural strand-woven, testing around 2,977 lbf versus 3,335 lbf for the natural equivalent.
Carbonization also increases the bamboo’s hygroscopicity slightly, meaning carbonized floors absorb ambient moisture more readily than natural floors, which affects dimensional stability in humid environments. Buyers selecting carbonized bamboo for kitchens or high-humidity spaces should account for this characteristic during product selection.
The Role of Adhesives in Bamboo Flooring Manufacturing
Adhesives bond the laminated layers in horizontal and vertical bamboo and saturate the fiber bundles in strand-woven production. The adhesive system chosen by the manufacturer determines the floor’s VOC emission profile, bond strength under moisture exposure, and resistance to delamination over time. Three adhesive categories dominate bamboo flooring production.
Urea-formaldehyde (UF) resin is the lowest-cost option and cures fastest, but emits formaldehyde as a volatile organic compound that off-gasses into indoor spaces over time. Budget-priced bamboo floors frequently use UF adhesive without disclosing this in marketing materials. Melamine-urea-formaldehyde (MUF) resin offers improved water resistance and lower emission levels than pure UF, serving as a mid-range compromise. No-added-formaldehyde (NAF) adhesives — including MDI (methylene diphenyl diisocyanate), EPI (emulsion polymer isocyanate), and soy-based systems — eliminate formaldehyde from the manufacturing process entirely and are standard in premium products marketed to health-conscious or certification-seeking buyers.
Certification standards provide a measurable way to verify adhesive safety. CARB Phase 2 compliance sets the U.S. benchmark for formaldehyde emissions from composite wood products. The European E1 standard limits formaldehyde emission to 0.1 ppm, while E0 requires levels below the threshold of detection. Buyers concerned about indoor air quality should request certification documentation from the manufacturer rather than relying on marketing language. The relationship between bamboo flooring adhesives and VOC emissions deserves scrutiny at the point of purchase, because no surface inspection reveals the adhesive system used inside a plank.
Glue application volume also affects performance independent of adhesive type. Under-application produces weak bonds that fail under repeated moisture cycling, leading to delamination. Over-application causes adhesive bleed-through between layers, which interferes with lacquer adhesion during finishing. Quality factories calibrate automated glue lines to deliver precise volumes and test bond strength using shear and delamination protocols throughout the production run.
How Pressing, Planing, and Milling Shape the Final Plank
After gluing, bamboo strips or compressed strand blocks enter hot or cold presses where heat and pressure cure the adhesive and consolidate the layers into a rigid board. For traditional laminated bamboo, press temperatures typically range from 120°C to 150°C. For strand-woven production, the cold-press phase uses up to 2,800 tons of mechanical force before a secondary heat treatment activates the resin fully. Pressing duration ranges from 20 to 45 minutes depending on board thickness and adhesive type.
The cured boards exit the press with surface irregularities, edge roughness, and dimensional variation that require correction before finishing. Planing machines remove surface inconsistencies to achieve flat, parallel faces. Precision saws trim the boards to target length and width. Milling machines then cut the tongue-and-groove profiles — or click-lock geometries — into the plank edges. The accuracy of this milling step determines how tightly planks fit together during installation. Poorly milled tongue-and-groove profiles create gaps between planks that collect debris, trap moisture, and allow the floor to flex underfoot.
Thickness consistency across a production batch directly affects installation outcomes. Planks that vary by more than 0.3 mm in thickness create visible height differences at plank edges, called lippage, which compound over a large floor area. Reputable manufacturers specify thickness tolerances and provide quality control documentation confirming compliance. Bamboo flooring thickness also determines structural stiffness and the number of times the floor can be sanded and refinished during its service life.
How Bamboo Flooring Is Finished Before It Leaves the Factory
Pre-finished bamboo flooring receives its surface coating at the factory before packaging and shipping. The finishing sequence typically begins with a sealer coat applied to the sanded plank surface, followed by an aluminum oxide layer that embeds fine metal particles into the finish film to resist abrasion. Subsequent coats of UV-cured polyurethane build the surface to the target sheen level — satin, semi-gloss, or high-gloss — with anti-scratch additives incorporated into the final topcoat. Premium products apply between 9 and 11 individual coating passes.
UV curing replaces traditional heat or air drying for the polyurethane coats. Ultraviolet lamps harden the finish within seconds of application, eliminating the solvent off-gassing that occurs with air-dried lacquers and allowing continuous production line speeds. Aluminum oxide concentration in the wear layer determines scratch resistance more than coat count alone — higher aluminum oxide loading per coat produces a harder finish film. The type of finish applied during manufacturing affects not only durability but also the floor’s compatibility with future refinishing.
Unfinished bamboo flooring skips the factory coating stage and ships as raw planed boards. Site finishing allows the installer to apply coatings after installation, which produces seamless finish coverage across plank joints. However, unfinished bamboo requires the subfloor environment to be controlled during the finishing process and adds labor cost to the installation budget.
Color staining, when required, occurs between the sealer coat and the first aluminum oxide layer. Stains penetrate the surface fibers to alter color before the protective coating locks them in. Stained bamboo differs from carbonized bamboo in that the color resides only in the upper finish layers; sanding through the finish during refinishing removes the stain and exposes the underlying natural or carbonized bamboo color.
How Engineered Bamboo Flooring Is Constructed Differently
Engineered bamboo flooring uses a multi-layer construction in which a thin bamboo wear layer — either horizontal, vertical, or strand-woven — bonds to a core of high-density fiberboard (HDF), plywood, or cross-laminated wood veneers. The wear layer provides the surface appearance and abrasion resistance. The core provides dimensional stability by orienting adjacent layers at perpendicular grain directions, which counteracts the expansion and contraction forces that cause solid bamboo to move with humidity changes.
The thickness of the bamboo wear layer in engineered construction ranges from 0.6 mm to 6 mm depending on product grade and price point. Wear layers below 2 mm cannot be sanded and refinished without penetrating through to the core. Wear layers of 3 mm or more support one to two refinishing cycles. The stability advantage of engineered construction makes it suitable for installation over radiant heating systems and in below-grade applications where solid bamboo would expand excessively. The trade-offs and appropriate applications for both formats are covered in detail in the solid vs. engineered bamboo flooring comparison.
Quality Control Processes That Separate Premium from Budget Bamboo
Reputable factories conduct Janka hardness testing throughout production runs rather than once per product line, because bamboo hardness varies with raw material age, moisture content at pressing, and adhesive cure completeness. Some manufacturers inflate Janka ratings by testing only the node sections of the bamboo stalk — the hardest point of each culm — rather than the internode sections that constitute the majority of a finished plank’s surface area. Buyers should request test data specifying the testing methodology and sample location.
Color sorting occurs after milling and before packaging. Bamboo produces natural color variation across culms and within individual planks; a single production batch generates light, medium, and dark tone categories that factories separate to ensure each box contains visually consistent material. Boxes mixed with disparate tones create installation problems that are difficult to correct without replacing planks.
Moisture content testing of finished planks before shipment provides the final verification that kiln-drying achieved target specifications. Planks shipped at moisture content above 10% risk developing gaps or surface checking after installation in temperate climates where indoor relative humidity typically runs between 35% and 55%. Requesting moisture content data from the distributor before purchase is a straightforward quality check that most buyers overlook.
What the Manufacturing Process Reveals About Common Bamboo Flooring Problems
Most structural failures in bamboo flooring trace directly to manufacturing decisions made before the product left the factory. Delamination — the separation of laminated layers — results from insufficient adhesive application, under-cured resin, or strips that retained too much moisture at the pressing stage. Warping after installation typically reflects strips that exited the kiln with uneven moisture distribution across their width or depth. Premature finish peeling indicates insufficient sealer penetration before the topcoat layers were applied, or aluminum oxide loading below specification.
These failure modes are not random. Each maps to a specific manufacturing variable that quality control processes are designed to catch before the product ships. A floor that warps, delaminates, or loses its finish within two years of installation was, in most cases, a manufacturing defect — not an installation error or a maintenance failure. Understanding the production sequence equips buyers to ask the right questions before purchase and to identify legitimate warranty claims when problems emerge. The full taxonomy of common bamboo flooring problems shows how these manufacturing variables express themselves as visible defects after installation.
How Manufacturing Method Connects to Durability and Long-Term Performance
The manufacturing method selected at the outset of production creates a performance ceiling that no finish or installation technique can exceed. Strand-woven bamboo, manufactured through fiber shredding and high-pressure compression, produces a floor that outperforms traditional laminated bamboo in hardness, density, and resistance to surface wear. Traditional horizontal and vertical formats offer authentic bamboo aesthetics at lower manufacturing cost but deliver lower Janka ratings and greater sensitivity to moisture-driven dimensional movement.
Carbonization trades measurable hardness — approximately 20% in traditional formats — for a color depth that cannot be replicated by surface staining. NAUF adhesive systems add cost but eliminate formaldehyde from the indoor environment for the life of the floor. Engineered construction sacrifices refinishability in thin wear layers but provides stability that makes bamboo viable in subfloor and radiant heating conditions where solid formats fail.
Each of these trade-offs is encoded in the floor at the manufacturing stage, making the production process the most consequential variable in the entire bamboo flooring durability equation. No amount of careful maintenance recovers the hardness lost during carbonization, and no installation technique compensates for strips pressed at incorrect moisture content. Selecting bamboo flooring starts with understanding what happened in the factory, long before the product reached the showroom.
